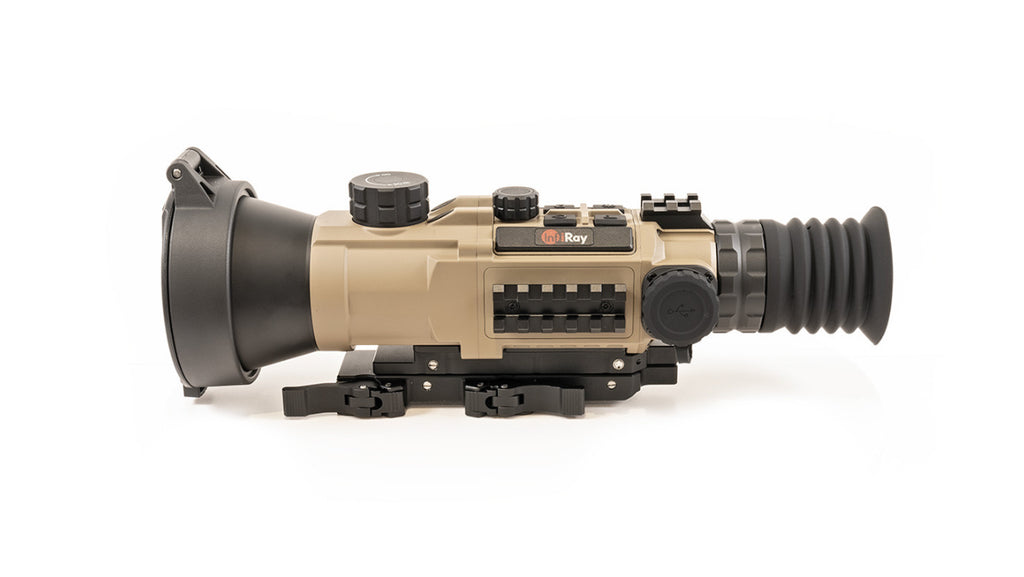

Iray Hybrid 75

The InfiRay Outdoor RICO HYBRID fuses the capabilities of a thermal clip-on and a thermal weapon sight to create a new breed of thermal device. The HYBRID gives you never-before-seen versatility and performance, boasting a 3,600 yard detection range as a dedicated thermal sight, or compatibility with day optics up to 10× as an inline clip-on sight. The combination of the HYBRID’s low-distortion orthoscopic eyepiece and a 1.03-inch large-format 2560×1920 display provides comfortable viewing as a dedicated sight while still maintaining the pixel density and resolution for use as a clip-on optic. The HYBRID also unlocks advanced features such as compatibility with a 1,000 yard laser rangefinder, a custom reticle generator, Bluetooth remote, and an onboard ballistic solver.

• Objective Focal Length

  75mm

  Display Type

  AMOLED

  Eye Relief

  60mm

  Digital Magnification

  8X

  Diopter Range

  -4 to +2

  Vertical Angular Field of View

  4.4°

  Horizontal Angular Field of View

  5.9°

  Focusing Mechanism

  Manual Focus

  Objective F#

  1.0

  Objective Diameter

  75mm

  Objective Lens Material

  Germanium

  Display Resolution

  2560x1920

  Detection Range

  3600 Yards

  Optical Magnification

  4X

• Features & Performance

  Warranty

  5 Years

  Startup Time

  <10 Seconds, Instant from Standby

  Rangefinder

  ILR-1000-2 LRF (Optional/Not Included)

  Color Palettes

  White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline

  Picture-in-Picture

  Yes

  Storage Capacity

  64GB

  Connector Output

  Power/Data

  User-Updatable Firmware

  Yes

  Mobile App

  Yes

  Run Time

  6+

  Power Source

  USB-C External, IBP-1H Li-ion Battery Pack

  One-Shot Zero

  Yes

  Stand-by Mode

  Yes

  Reticle

  9 (7 Static, 1 DIY, 1 BDC)

  Connector Type

  USB-C

  External Power Source

  USB-C

  Country of Manufacture

  China

  Wifi

  Yes

  Onboard Recording

  Yes

  Image Capture

  Yes

• Environmental Specifications

  Operating Temperature Range

  -4°F~122°F

  Recoil Rating

  1000 g/s² (300 Win./7mm Mag)

  Ingress Protection

  IP67

• Physical

  Mounting Interface

  Picatinny MIL-STD 1913 Rail

  Housing Material

  Magnesium Alloy

  Weight

  45.08 Oz.

  Height

  3.58

  Width

  4.13

  Length

  12.20

• Sensor Specifications

  Sensor Type

  InfiRay MICRO II

  Device Technology

  Thermal Imaging

  Sensor Resolution

  640×512

  Sensor Pixel Size

  12μm

  Thermal Sensitivity

  <25mk

  Non-Uniformity Correction (NUC)

  Manual, Automatic, Semi-Automatic

  Sensor Frame Rate

  50hz
